Truth Marvel Motor
|
 |
 |
 |
 |
 |
Marvel 120 V Accuator
$ 649.99
|
AC Switch
SW5657-2W
$ 44.99 |

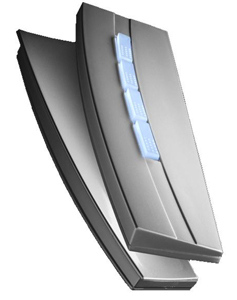

Marvel Remote
$ 299.99
Requires Control box |
Marvel Control Box
$ 349.99
needed to use Remote or Rain Sensor |
Rain Sensor
169.99
Requires Control box |
| Instructions |
More Info
|
Instructions |
APPLICATIONS

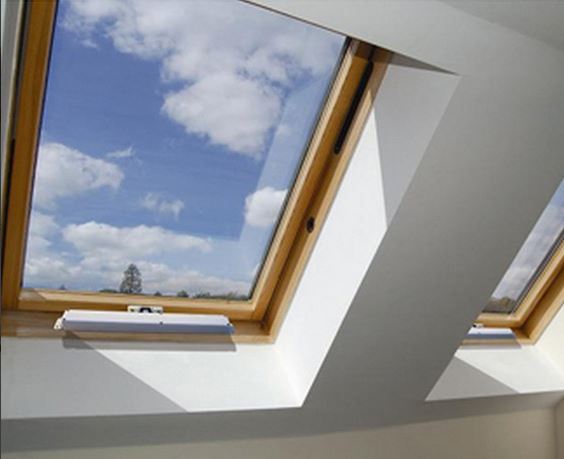

For casement or awning windows, or small skylights.
- Marvel is designed to operate any properly sized window or skylight using a Truth Hardware hinge system.
- With 45 lbs. of lifting load at the chain the Marvel System is rated to lift skylight sashes that weigh up to 90 lbs
- Marvel Operators are ANSI/UL 325 Certified and CAN/CSA C22.2 Certified.
|
FEATURES & BENEFITS
- AC motor (for 110 house-current).
- Operator has steel chain, length is 9-1/2 inches.
- ANSI/UL 325 certified and CAN/CSA C22.2 certified.
- Marvel is designed to operate any properly sized window or skylight using a Truth Hardware hinge system (visit www.Truth.com for details).
- Marvel is load-rated for 45 lbs. of lift at the chain, therefore for skylights up to 90 lbs, and heavier windows depending on window dimensions.
- For awning windows, use Marvel with loose-rivet type hinges such as Truth 13 Series or 34 Series 4-bar hinges.
- Case size 14-1/4” x 1-7/8” x 1-5/16”.
- Plug-in cord, 14 gauge (installer can replace with longer cord if needed).
- Marvel mounts direct to sill (an operator is not needed).
- Mounting brackets are included (3 types of installation brackets).
- Up to 4 Marvel motors can be operated by one switch (not included).
Automated Vent Controls.
|
OPTIONS
- Marvel has a plastic case, available in choice of white or bronze.
- RF remote control (80ft range), can control up to 4 Marvel Motors. Magnetic wall mount included. Requires optional RF receiver pack
- Rain sensor, connects directly to RF receiver (Required)
- Switch sold separately.
|
 |
