Pocket Door Locks Pocket Door Rollers
Low Shipping rate $10.00 for your entire order, regardless of size

Center hook is now silver on all units
Keyed Pocket door locks fit 1 3/8" or 1 3/4" thick doors
Solid brass Trim Plates and Profile Cylinder


Cylinder length is 1 3/4"
so cylinder will protrude
3/16 on each side of a
1 3/8" thick door

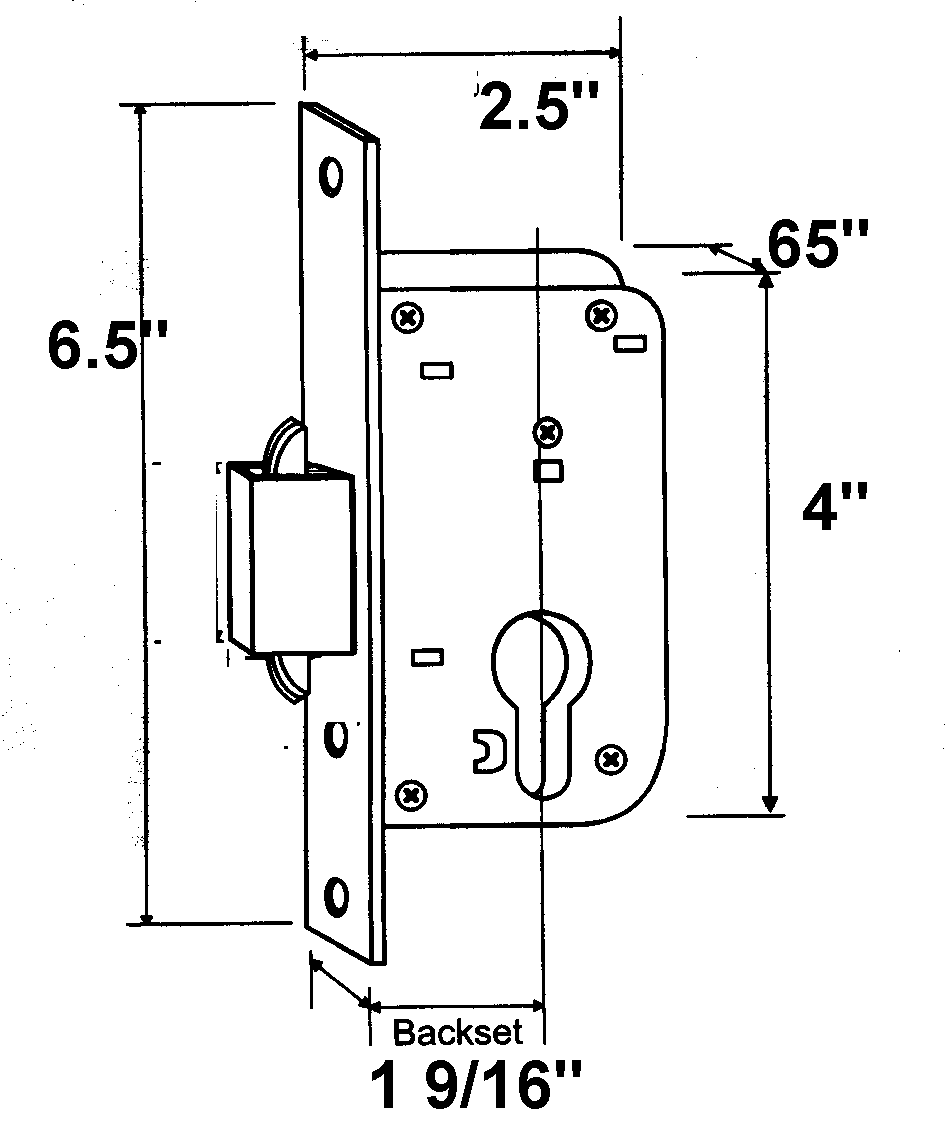

KPD pocket door lock
with 1 9/16 backset Standard Lock
Available in 3 finishes

KPD-AL Alum Trim / Brushed Chrome $ 100.00
KPD-15 Satin Nickel /Brushed Chrome
lock box brushed chrome/ cylinder and trim satin nickel
$ 134.00
KPD-10B Oil Rubbed Bronze $ 134.00
ORDER KPD ONLINE
Select Finish
Quantity
Does not include edge or flush pulls
visit our Pocket door page for more information

Center hook silver on all units

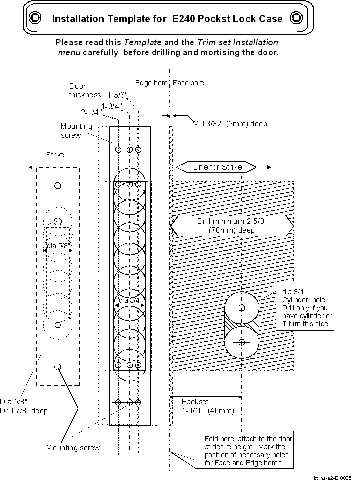

Installation Templates

GIF format - 1/2 size

Word Doc - full size

Also Available with
T-Turn interior
for Extra Charge


Turn units will
not fit into pocket

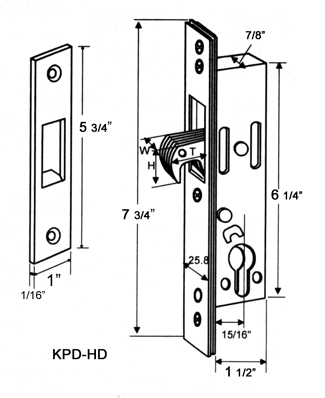

KPD-HD Pocket Door Lock
with 15/16 backset Heavy Duty Hook Lock
Available in 4 finishes

KPD HD - 3 Polished Brass
w/ Brushed brass Edge Trim
lock box brushed brass / cylinder and trim polished brass
$ 140.00
KPD HD - AL Aluminum Face Trim
Brushed Chrome Edge trim
$ 130.00
KPD HD - 15 Satin Nickel Face Trim
Brushed Chrome Edge Trim
lock box brushed chrome/ cylinder and trim satin nickel
$ 160.00
KPD HD - 10B Oil Rubbed Bronze
$ 160.00
ORDER KPD - HD ONLINE
Select Finish
Quantity
Does not include edge or flush pulls
visit our Pocket door page for more information

hook is silver on all units






New! Self Adhesive
Aluminum Trim
2 5/8" x 1 1/8"

new
new

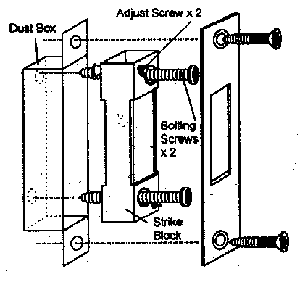

optional Strike Block and Reinforcer
with dust box for KPD
Strengthens instal for Exterior doors
helps eliminate gap between door and jamb
$11.00
Quantity

not recommended for KPD-HD

Customers have been asking us for a reasonable priced keyed lock for their pocket doors. So we found one!
This lock has barbs that are projected up and down locking the door to the strike The barbs are released by
turning the key with a full rotation of the profile cylinder. Because of space the unit is only available with
keys on both sides - a turn unit would be available but the door will not retract into the pocket.

Currently available in only Brass, Satin Nickel, and Oil Rubbed Bronze
Please contact us for the keyed pocket door locks in other finishes.

We also handle the Baldwin keyed pocket door lock
